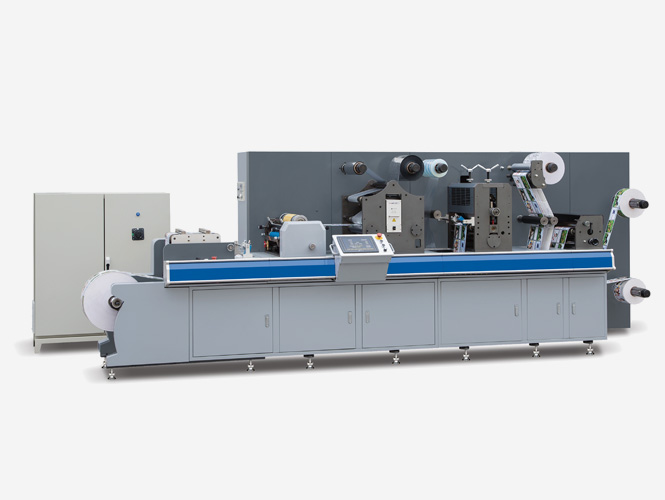

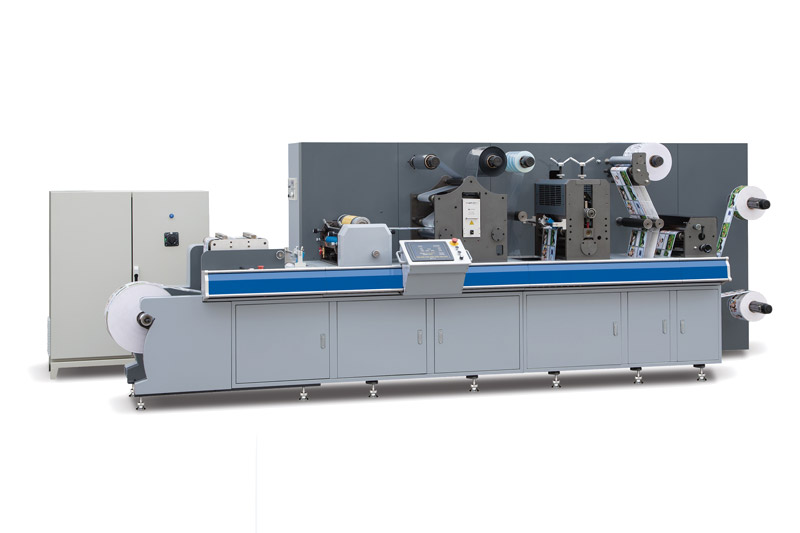

ZM Rotary/semi-rotary Label Die-cutting Machine
ZM Rotary/semi-rotary Label Die-cutting Machine

Rotary/semi-rotary Label Die-cutting Machine

Features

Model ZM-320
Get a Quote
Share:
Product Details
MAIN FEATURES

ZM-320 Label rotary die cutting machine is new developed converting machine equipped with inline slitter. This machine adopts latest Rexrtoh-Bosch (Germany) servo motors and control system, including: unwinder, web-guider, lamination, register die-cutter, slitter and dual rewinder. The register die-cutting system is our patented product, it can be full rotary or semi-rotary die-cutter according to the production requirement. When ZM-320 runs in semi-rotary mode, the tension among unwinder, web-guider and rewinder will be the same (different from traditional intermittent type), the material will not run away during the die-cutting. Semi-rotary die-cutting unit adopts one big magnetic cylinder, if you have different applications, the only job is to change the flexible die. If the job is large quantity, then you can choose full rotary die-cutting mode (even in full rotary die-cutting mode, the registration is available and perfect), it will highly increase the die-cutting output. ZM-320 machine has the characteristics of fast speed, super accuracy, easy operation, high efficiency and less cost. It`s good for all kind of label die-cutting jobs,include short run and long run. ZX-320 rotary/semi-rotary label die-cutting machine committes to make the maximum profit for you, it's an ideal converting machine for the printing house.



Technical highlights

Servo Control System

Full Rotary and Semi-rotary Mode



MAIN TECHNICAL PARAMETERS
Max. die-cutting speed (rotary)
(Semi-rotary)
120m/min
65m/min
Max. die-cutting length (rotary)
(Semi-rotary)
190.5 - 539.75mm
100-350mm
Max. die-cutting width 300mm
Max. web width 320mm
Max. unwinder dia 700mm
Max. rewinder dia 600mm
Die-cutting accuracy ±0.1mm
Slitting width ≥20mm
Power supply 380V 3P
Weight 2600kgs
(1 set die cut, 1 set cut)
Dimensions(L×W×H) 3220×1680×1660mm
(1 set die cut, 1 set cut)

Note: Can be made according to buyer's requirement

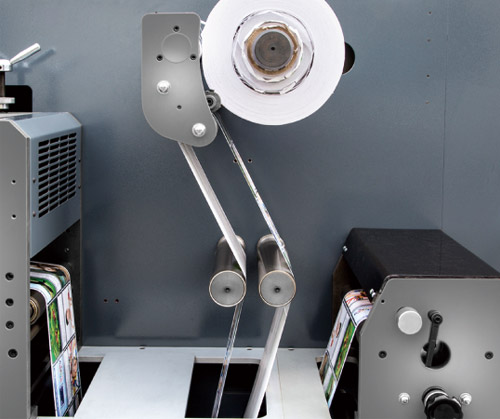

Unwinder with Pneumatic Lift

Unwinder with Pneumatic Lift

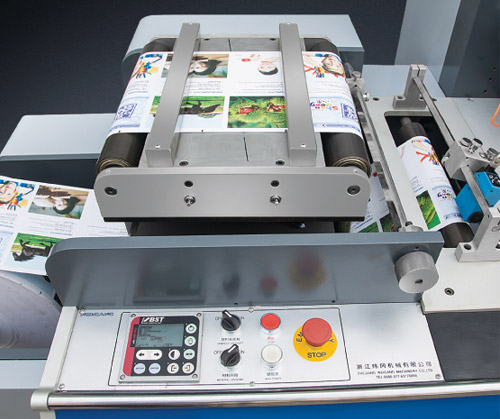

BST Web-guider

BST Web-guider

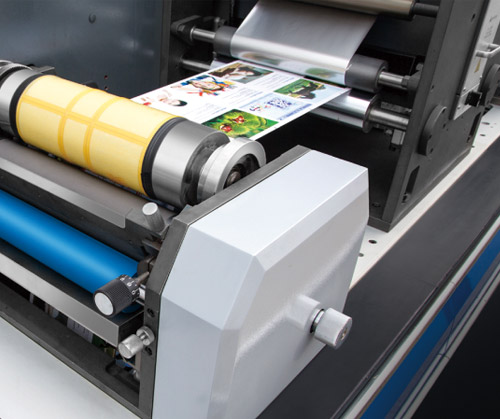

Flexo (Varnishing) Unit

Flexo (Varnishing) Unit

Cold Stamping Unit

Cold Stamping Unit

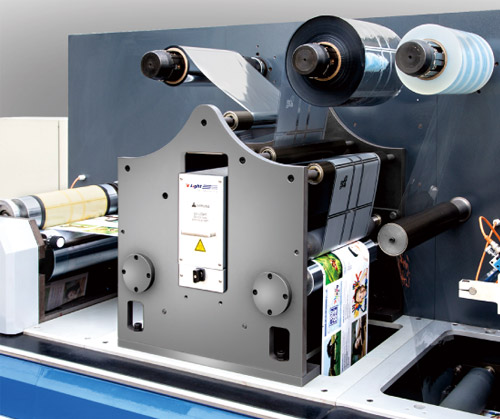

Lamination Unit

Lamination Unit

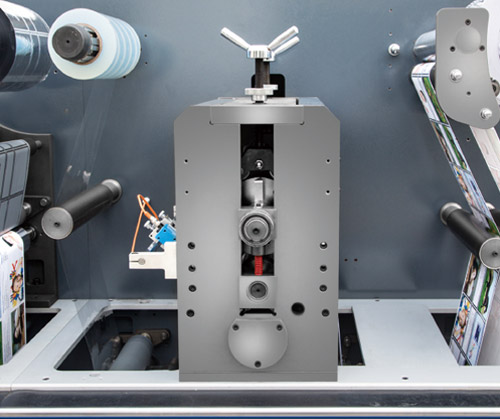

Die-cutting Unit

Die-cutting Unit

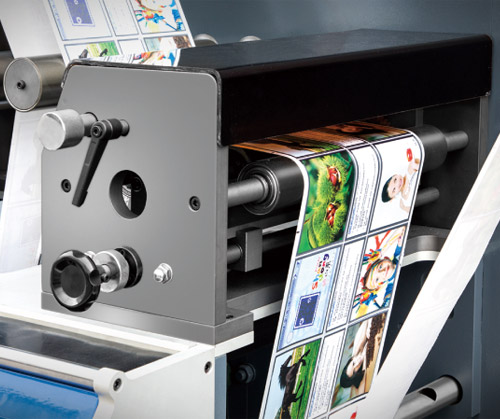

Slitting Unit

Slitting Unit

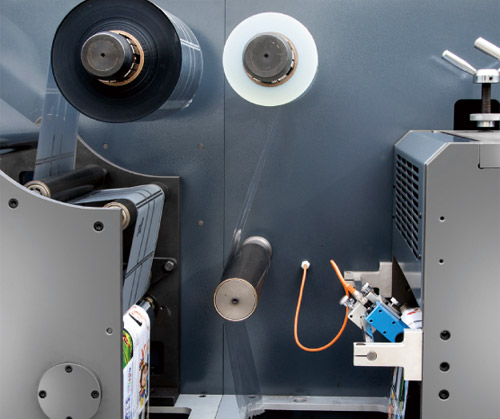

Matrix Unit

Matrix Unit

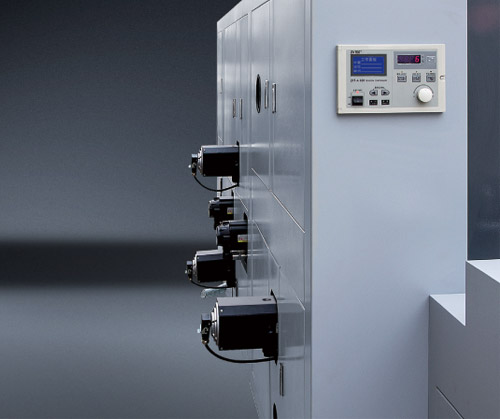

Fully Servo Shaftless Driving System

Fully Servo Shaftless Driving System

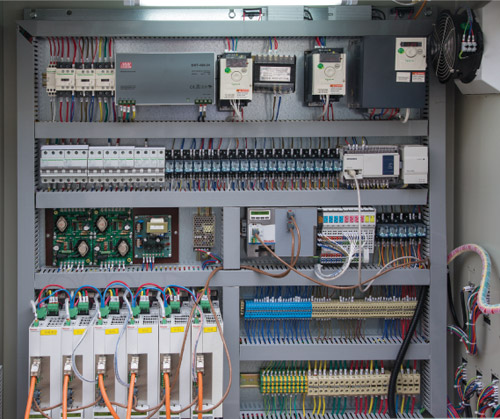

Germany Control System

Germany Control System
