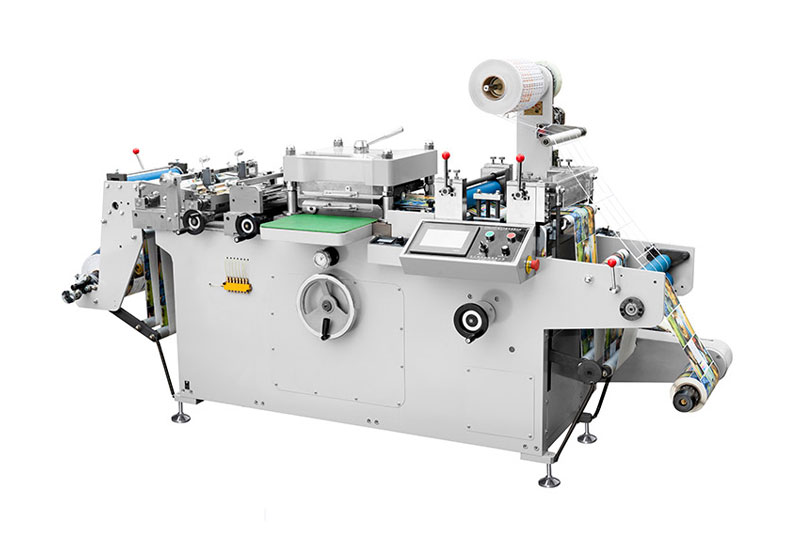

WQM Adhesive Label Die-cutting Machine
WQM Adhesive Label Die-cutting Machine

Adhesive Label Die-cutting Machine

Features

Model WQM-320 WQM-420
Cutting speed 20-220 pm/min    20-210 pm/min
Accuracy ±0.15mm ±0.15mm
Total power 3.5kw 4.5kw
Power supply 220v±10% 380v
Get a Quote PDF Datasheet
Share:
Product Details
MAIN FEATURES

This machine adopts accurate flat die-cutting system, controlled by servo motor.

There are two sensors to control the web-guider and one sensor to follow the registration mark. It’s suitable for die-cutting all kind of adhesive labels and hologram labels. It's the ideal converting machine for flexo printing machine, screen printing machine and gravure printing machine.



MAIN TECHNICAL PARAMETERS
Model WQM-320 WQM-420
Cutting speed 20-220 pm/min 20-210 pm/min
Max.unwinding diameter 500mm 500mm
Max.web width 320mm 420mm
Max.die-cutting width 300mm 400mm
Max.die-cutting length 300mm 400mm
Accuracy ±0.15mm ±0.15mm
Total power 3.5kw 4.5kw
Power supply 220v±10% 380v
Machine weight About 1700kgs About 2300kgs
Dimensions(L×W×H) 2600x990x1400mm 2950×1350×1400mm

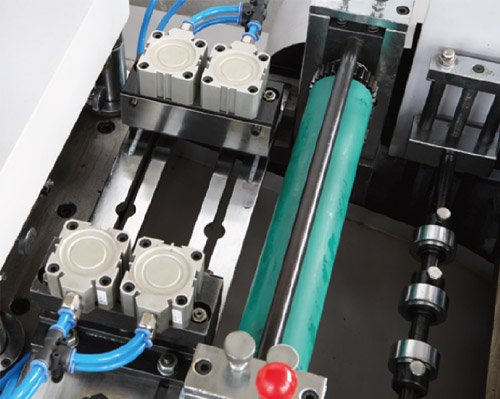

Punching System

Punching System

Can be middle or side punching

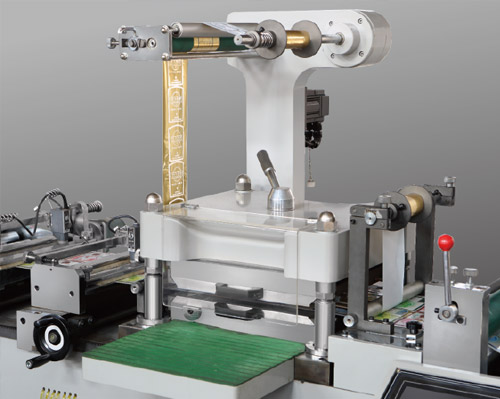

Hot-stamping Controlled

Hot-stamping Controlled

By Servomotor

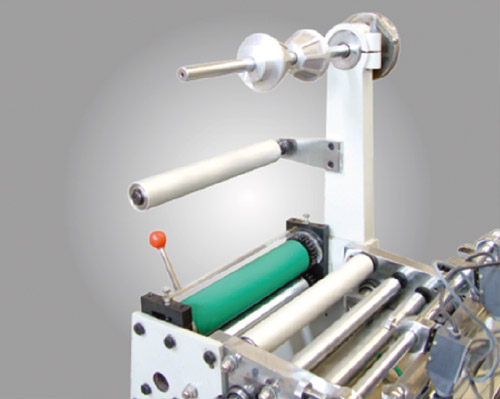

Lamination Unit

Lamination Unit

Can be installed in different position
