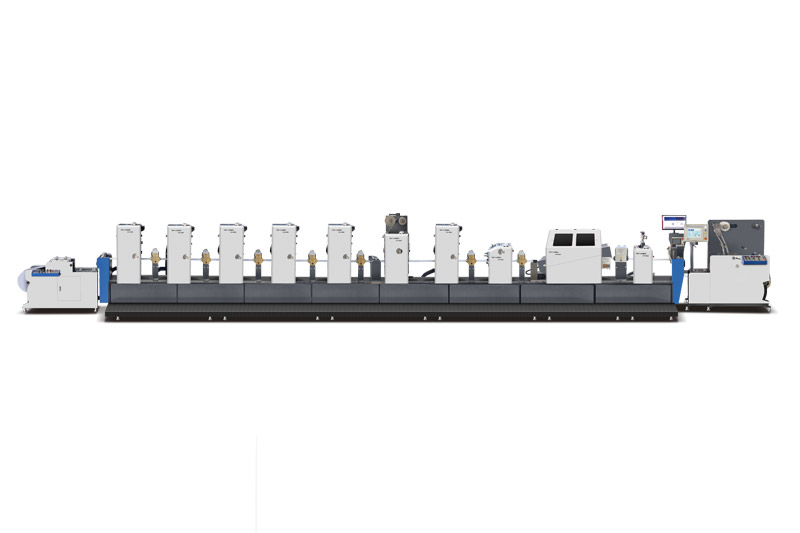

Intermittent Label Offset Printing Machine
Intermittent Label Offset Printing Machine
Intermittent Label Offset Printing Machine

Intermittent Label Offset Printing Machine

Features

Model ZX-320 ZX-450
Printing speed 50-180 rpm/min   50-150 rpm/min
Printing color 4-10colors 4-10colors
Max. printing length   350mm 380mm
Get a Quote PDF Datasheet
Share:
Product Details
MAIN FEATURES

ZX-320 Label Offset Printing Machine adopts latest servo control system which can ensure the material nip steady and accuracy. It can free from the printing roller change.

The operation of this machine is faster, convenient and simple. PS plate intermittent printing hits the high level label demands from short run to long run. It' s the best choice for printing highest quality labels with lowest production cost.



Technical Highlights

Servo Control System

Ps Plate Intermittent Printing

Heavy Offset Printing Unit



MAIN TECHNICAL PARAMETERS
Model ZX-320 ZX-450
Printing speed 50-180 rpm/min 50-150 rpm/min
Printing color 4-10colors 4-10colors
Max. printing length 350mm 380mm
Max. web width 320mm 470mm
Max. printing width 300mm 450mm
Max. unwinding diameter 700mm 700mm
Max. rewinding diameter 600mm 600mm
Power supply 3 phase 380V 3 phase 380V
Total power 33.6kw (without UV power) 40kw(without UV power)
Dimensions
(L×W×H)
10550×1600×1800mm
(6colors)
11150×1700×1800mm
(6colors)
Main machine weight about 9.5t about 11.5t

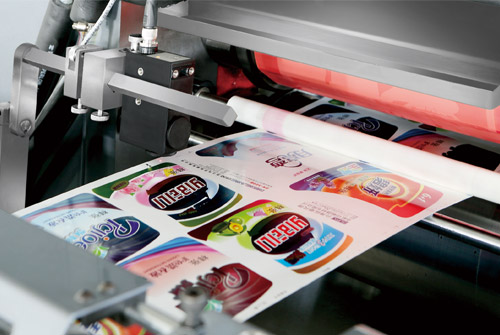

Second Pass Register Sensor

Second Pass Register Sensor

Super large printing area of 300x350mm, the max repeat length can go up to 350mm and the max running speed can be 63m/min. By high-precision photocells, the machine ensures multi-register print on both side, make the possibility of label variety.

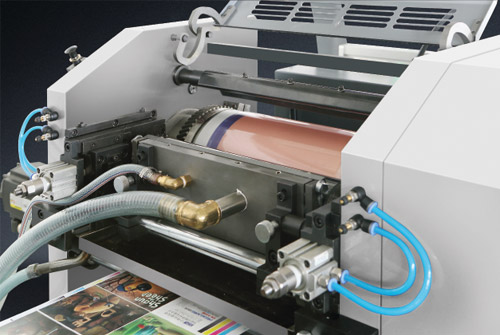

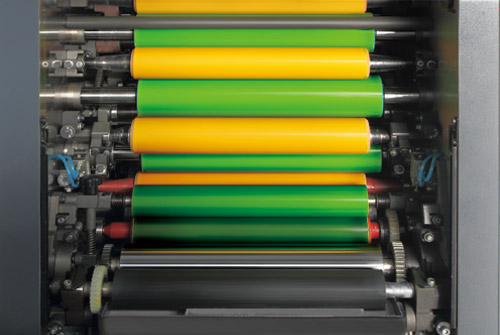

Heavy Offset Printing Unit

Heavy Offset Printing Unit

Printing unit: adopting high quality and heavy offset printing unit. Assembled with 19 pieces of ink rollers, 4pcs of Form Rollers and 4pieces of Water rollers (alchohol dampening system), has nice inking system which can largely avoid gear mark and ghost image. The fine and accurate printing would never be reached by flexo/letterpress machine.

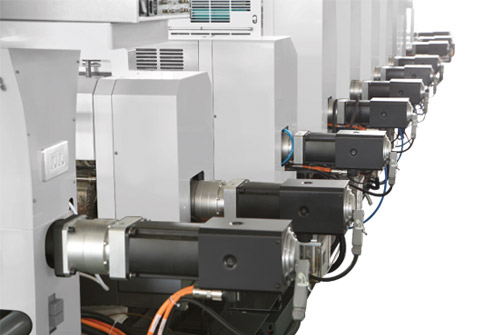

Shaftless Driving System

Shaftless Driving System

Every printing unit run by an independent servo motor, 15 sets of servo motors in total for whole machine (6color) to ensure the exact color registration during high speed operation. The vertical and horizontal motions of every printing unit are all controlled by independent motor (ease the laboring and reduce the waste).

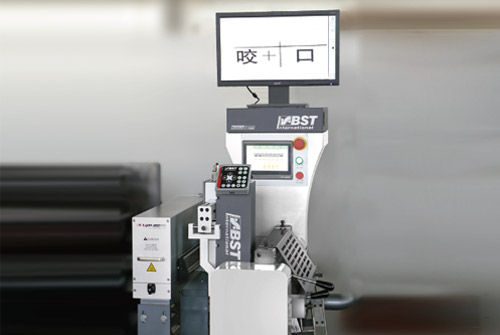

Video Inspecting System

Video Inspecting System

By video still system, the machine can regulate vertical & horizontal registering without stopping, it improves the printing quality and increases the producing capacity.

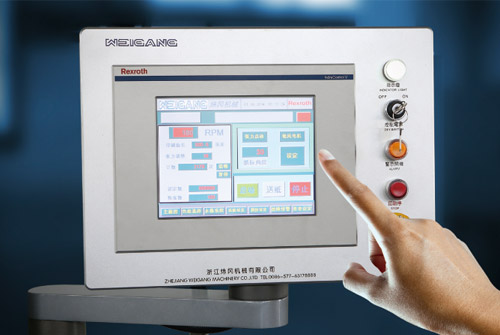

Touch Screen Control System

Touch Screen Control System

Touch LCD screen, faster CPU, 12inch operating display, independent touch screen in each printing unit, powerful human-computer dialogue system, multi-guide inspecting display interface, instant alarm signal, makes operation much easier and more efficient.

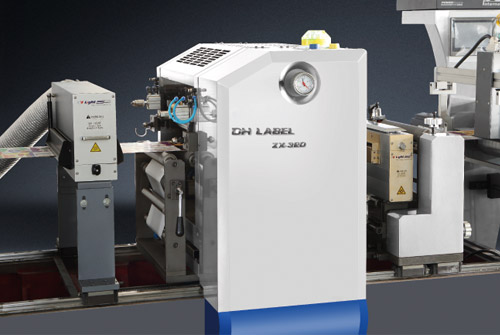

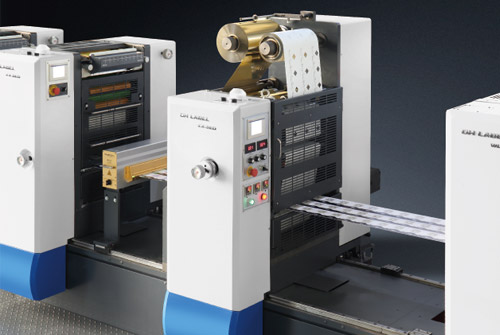

Cold Foiling Unit

Cold Foiling Unit

Inline cold foiling, has the characteristic of fast speed, high efficiency, increase the decorative effect for color and graphic. *Available Options

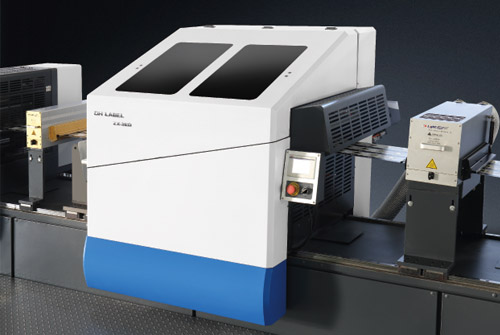

Screen Printing Unit

Screen Printing Unit

Inline flat screen printing, has characteristic of thick ink layer, strong relief perception. *Available Options

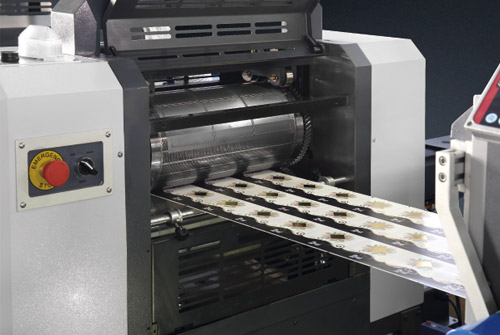

Rotary Die Cutting Station

Rotary Die Cutting Station

One big magnetic cylinder used in this machine, largely saves the tooling cost. Different die-cutting job can be achieved by changing the flexible die. *Available Options

Flexo UV Varnishing Unit with Chamber System

Flexo UV Varnishing Unit with Chamber System

Flexo UV varnishing unit (both solid and spot) makes the printing more shining and attractive. *Available Options

Delam/Relam Unit

Delam/Relam Unit

Delaminate the adhesive label, then printing on glue surface and re-laminating. *Available Options
