Tower Type Flexo Printing Machine
Tower Type Flexo Printing Machine

Tower Type Flexo Printing Machine

Features

Model ZBS-320 ZBS-450
Printing speed 60 m/min
Printing colour  1-6 colours
Max. web width  320mm
Precision of chromatography   ±0.1mm
Get a Quote PDF Datasheet
Share:
Product Details
MAIN FEATURES

1. Adopt the ceramic anilox cylinder to transfer the ink.

2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.

3. Each printing unit adopts 360°plate adjustment.

4. Each printing unit equips with hot air dryer.

5. This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.

6. The ink rollers will be separated from the printing rollers, and keep running when the machine stops.

7. Main motor use inverter to adjust stepless speed.

8. The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing adhesive label.



Main Technical Parameters
Model ZBS-320
Printing speed 60 m/min
Printing colour  1-6 colours
Max. web width  320mm
Max. printing width 310mm
Max. unwinding diameter 600mm
Max. rewinding diameter 600mm
Printing length 177.8-355.6mm
222.25-539.25mm (Options)
Precision of chromatography ±0.1mm
Dimensions(L×W×H) 2000x1100x2600mm
Machine weight About 2150kgs

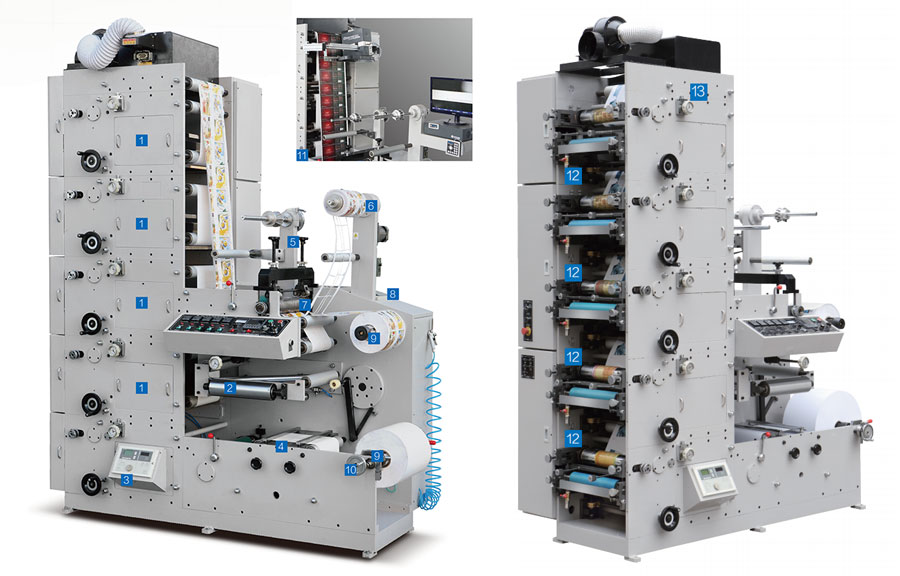

1 Hot Air Dryer
*UV Dryer
2 * Turn Bar
3 *Tension Control System
(Mitsubishi, Japan)
4 Splicing Table and Web-guider
5 Laminating Unit
6 Matrix Unit
7 Rotary Die-cutting Station
8 Rewinding Tension Control
9 Air Shaft
10 Adjusting Handle for Left/right
11 *Video System
12 Flexo Printing Unit
13 360° Registration Device

(*=Options)
