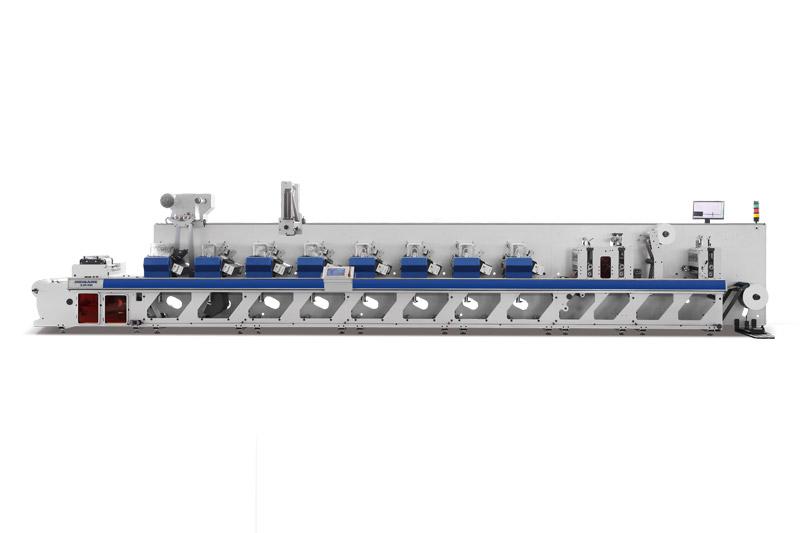

Modular Type Flexo Printing Machine
Modular Type Flexo Printing Machine
Modular Type Flexo Printing Machine

Modular Type Flexo Printing Machine

Features

Model ZJR-350 ZJR-450 ZJR-650
Max. printing speed 180m/min 180m/min 180m/min
Printing color 4-12 Colors   4-12 Colors   4-12 Colors
Max. printing width 350mm 450mm 650mm
Get a Quote PDF Datasheet
Share:
Product Details
MAIN FEATURES

1. The whole machine adopts the latest servo control system from Germany and each printing unit is driven by independent servo motor. There are 23 servo motors in total for 8-color machine which ensure the accurate registration during high speed running.

2. The printing roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design is largely improve the printing quality and reduces the maintenance.

3. Fast and easy pressure adjustment of printing or ink transferring: Printing roller run by bearer, it’s not necessary to adjust the pressure when change the roller, or at most fine adjustment for special job.

4. Anvil roller equipped with water chiller, which is good for film material.

5. Suitable for printing variety film material, such as PET, OPP, CPP, PP and so on.



TECHNICAL HIGHLIGHTS

Printing Sleeve Type

Printing Roller Run By Bearer

UV Dryer with Water Chiller



MAIN TECHNICAL PARAMETERS
Model ZJR-350 ZJR-450 ZJR-650
Max. printing speed 180m/min 180m/min 180m/min
Printing color 4-12 Colors 4-12 Colors 4-12 Colors
Max. printing width 350mm 450mm 650mm
Max. web width 360mm 470mm 670mm
Printing repeat length Z76-190
(241.3mm-603.25mm)
Z76-190
(241.3mm-603.25mm)
Z96-230
(304mm-730.25mm)
Max. unwinding dia. 900mm 900mm 1000mm
Max. rewinding dia. 900mm 900mm 1000mm
Dimensions(L×W×H) 10.83m x 1.56m x 1.52m 10.83m x 1.68m x 1.52m 10.0m×1.88m×1.56m
(For 8 colors,3 die cutting stations)

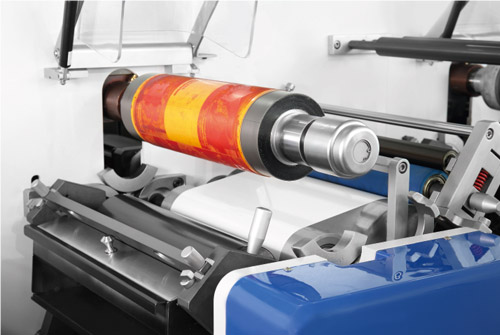

Sleeve

Sleeve

The printing roller adopts sleeve system which is light, easy, convenient and fast to change. Since there is no gear on the cylinder ,it largely improves the printing quality and reduces the maintenance.

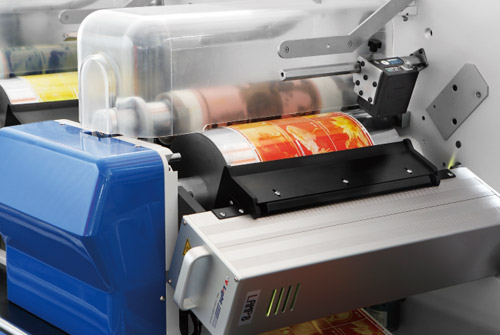

UV Dryer and Anvil Roller with Water Chiller

UV Dryer and Anvil Roller with Water Chiller

UV curing is equipped with water chiller, which lowers the temperature of flexo plate while printing. It reduces the friction between plate and material, improves the quality of printing and enables the machine to print variable film material, such as PP,PET,BOPP,etc.

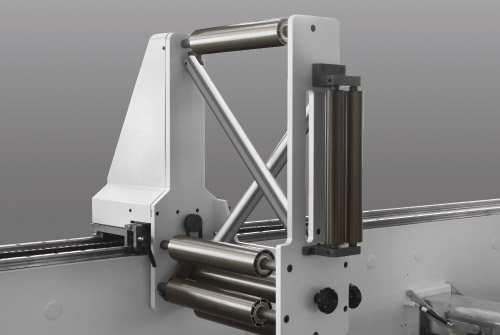

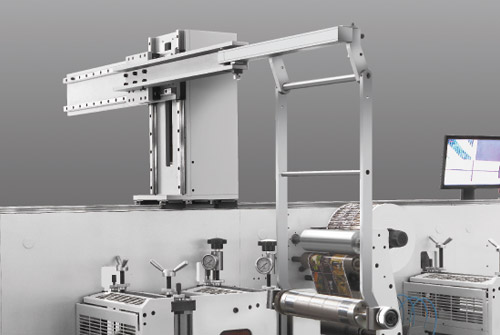

Movable Turn Bar

Movable Turn Bar

When the material needs to be printed on both sides, it can be completed at one time by turn bar.

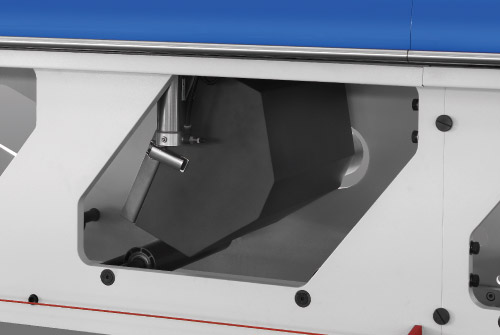

Matrix Unit

Matrix Unit

It is snowball matrix device with a good performance, the speed is synchronized with printing.

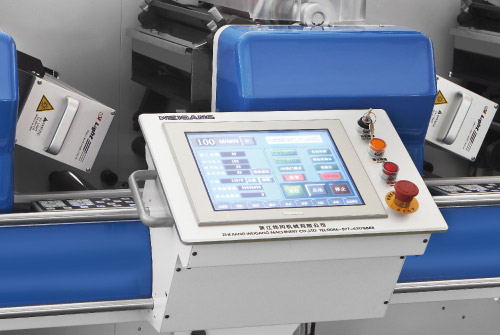

Movable Touch Screen

Movable Touch Screen

Touch LCD screen, faster CPU, 15inch operating display. The rich human-computer dialogue system, multi-guide inspecting display interface, instant alarm signal, makes operation much easier and more efficient.

Die Cutting Roller Lifter

Die Cutting Roller Lifter

It is an electric lifting device for changing magnetic rollers , convenient and fast.

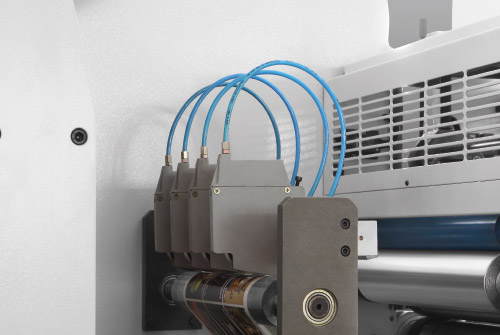

Hot Air Dryer (Option)

Hot Air Dryer (Option)

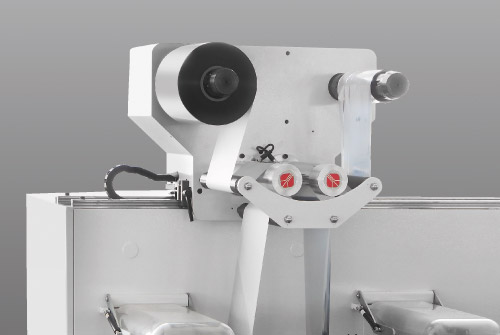

Movable Cold Stamping (Option)

Movable Cold Stamping (Option)

Slitting Unit (Option)

Slitting Unit (Option)
