Features

Model WG S350 Pro
Printing speed 45m/min
Printing colour  1-10 colours
Max. web width  360mm
Print Resolution 600*600dpi/900*600dpi/1200*600dpi
Get a Quote PDF Datasheet
Share:
Product Details
Main Features

1. Print heads combination are flexible: multiple combination per requirements.

2. Max print speed up to 60m/min which is high efficiency and suitable for variable job application.

3. Max print width up to 350mm which expands application range and increases flexibility .

4. Equips with high precision piezo print head, has longer using life.

5. Consistent printing quality, supporting 24/7 production

6. Adopts single pass solution, non-contact print, single pass print without plate making.

7 Max print resolution up to 1200*600dpi,900*600dpi and 600*600dpi are setable; dedicate print with vivid color.

8.CMYK+pantone cover max colors, white and varnishing provides value added effect .

9. Highly integrated software enables fastorder and very short run job.

10. Touch screen interface easy to understand and operate.

11. Automatic cleaning, moisturizing, and printhead anti-col-lision, makes machine easy and simple maintenance



MAIN TECHNICAL PARAMETERS
Model WG S350 Pro Series
Print control
Inkjet head Piezo print head,greyscale level
Print Resolution 600*600dpi/900*600dpi/1200*600dpi
Print Speed High resolution mode(1200*600dpi):30m/min
Normalmode(900*600dpi):45m/min
Single bit mode(600*600dpi):60m/min
Print Date Fix data, variable data (option)
Print head model EPSONS3200U1/U3
Ink
Ink type UV ink
Ink color CMYK,White, varnish and panton (option)
Ink tank 5L/color
Substrate system
Unwinder/rewinder Servo control, tension detector
Web break protect, roll dia. detector, etc.
Max unwinder/rewinder dia 700mm
Substate thickness (digital) 0.04-0.35mm
Max print width 350mm
Web cleaner Double side contacted type
Static eliminator Static eliminator bar
Max web width 360mm
Drying system
LED dryer White color and specialeffect: 1 color/dryer;
CMYK and panton: 2 colors/dryer
Max unwinder/rewinder dia 700mm
Substate thickness (digital) 0.04-0.35mm
Max print width 350mm
Web cleaner Double side contacted type
Static eliminator Static eliminator bar
Max web width 360mm
Drying system
LED dryer White color and special effect: 1 color/dryer;
CMYK and panton: 2 colors/dryer
Complete curing UV dryer in the end
Cleaning system
Cleaning unit Auto cleaning system
Data transfer
Connector XFP
Controlpanel Touch screen
Dimension
Dimension 7200*2500*2400mm
Floor space 18m²
Installation conditions
Surroundings Temperature: 20-30degree; humidity: 20-50%
Power supply 380V 3P
(machine: 25kw; LED/UV forinkjet:20kw)
Air supply 0.6Mpa

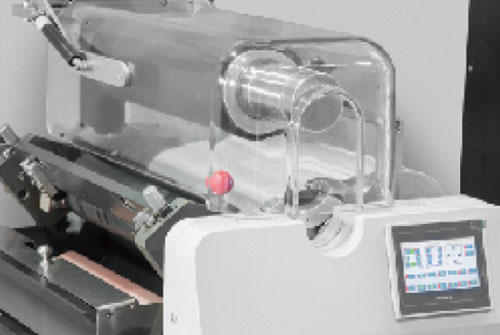

Web Guiding System

Web Guiding System

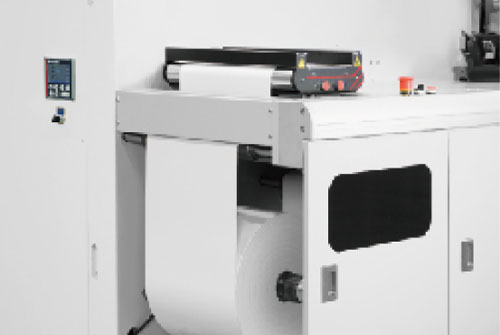

Flexo Printing Unit

Flexo Printing Unit

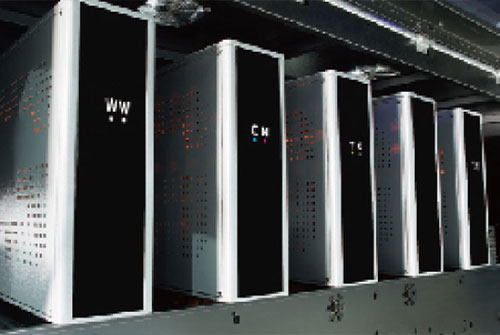

10 Digital Printing Colors

10 Digital Printing Colors

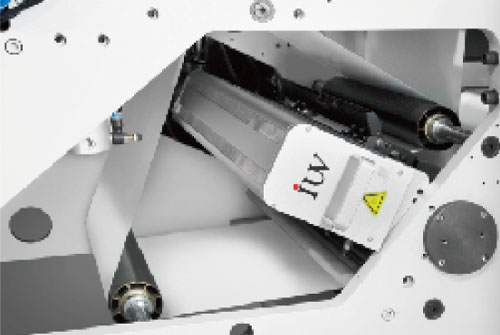

UV Drying

UV Drying
