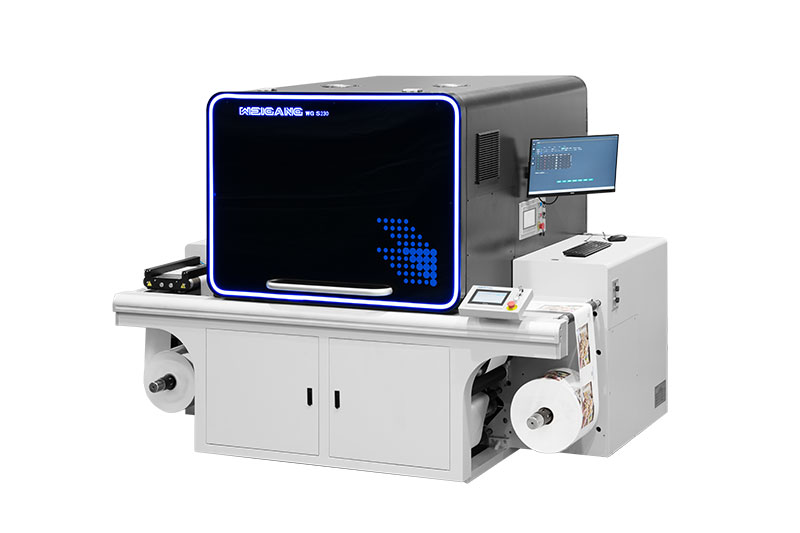

Automatic Digital Printing Machine
Automatic Digital Printing Machine

Automatic Digital Printing Machine

Features

Model WG S230
Printing speed 45m/min
Printing colour  1-6 colours
Max. web width  360mm
Print Resolution 600*600dpi/900*600dpi/1200*600dpi
Get a Quote PDF Datasheet
Share:
Product Details
MAIN FEATURES

1. Print heads combination are flexible: multiple combination per requirements.

2. Max print speed up to 60m/min which is high efficiency and suitable for variable job application.

3. Max print width up to 230mm which expands application range and increases flexibility.

4. Adopts single pass solution, non-contact print, single pass print without plate making.

5.Max print resolution up to 1200*600dpi, 900*600dpi and 600*600dpi are setable; dedicate print with vivid color.

6. Highly integrated software enables fast order and very short run job.

7. Touch screen interface easy to understand and operate.

8. Moisturizing,and print head anti-collision, makes machine easy and simple maintenance.

9. Compact model, small space request, can be adapted to various applications.

10. Equips with high precision piezo print head, has longer using life

11. Consistent printing quality, supporting 24/7 production





MAIN TECHNICAL PARAMETERS
Model WG S230
Print control
Inkjet head Piezo print head,greyscale level
Print Resolution 600*600dpi/900*600dpi/1200*600dpi
Print Speed High resolution mode(1200*600dpi):30m/min
Normalmode(900*600dpi):45m/min
Single bit mode(600*600dpi):60m/min
Print Date Fix data, variable data (option)
Print head model EPSONS3200U1/U3
Ink
Ink type UV ink
Ink color CMYK,White, varnish and panton (option)
Ink tank 5L/color
Substrate system
Unwinder/rewinder Servo control, tension detector
Web break protect, roll dia. detector, etc.
Max unwinder/rewinder dia 600mm
Substate thickness (digital) 0.04-0.35mm
Max print width 230mm(option350mm)
Web cleaner Double side contacted type
Static eliminator Static eliminator bar
Max web width 360mm
Drying system
LED dryer 2 color one-curing LED drying system
UV dryer in the end
Complete curing
Data transfer XFP
Connector Touch screen
Controlpanel
Dimension 2560*1700*1950mm
Dimension 4.5m²
Floor space
Installation conditions Temperature: 20-30degree, humidity: 20-50%
Surroundings 380V, 3P
Power supply (machine: 8kw, LED/UV forinkjet:9kw)
Air supply 0.6Mpa

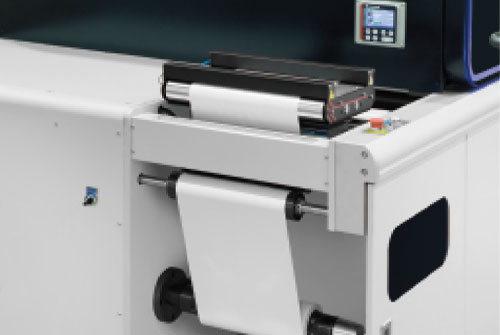

Unwinder

Unwinder

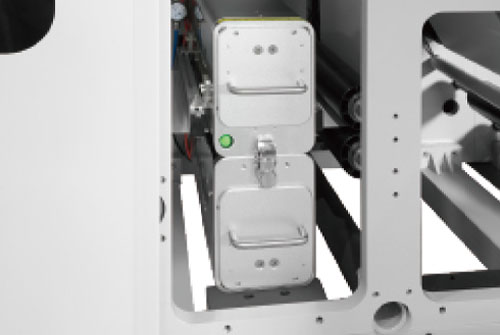

Web Cleaner

Web Cleaner

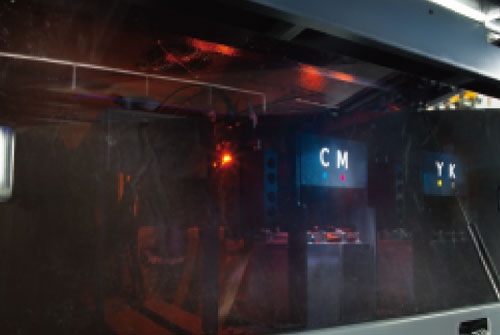

6 Printing Units

6 Printing Units

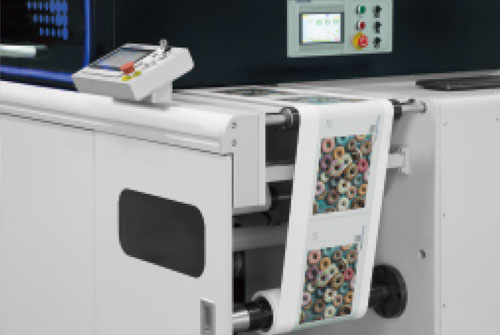

Rewinder

Rewinder
