ZJR S Hybrid (Flexo/Digital) Printing Machine
ZJR S Hybrid (Flexo/Digital) Printing Machine

Hybrid Printing Machine

Features

Model ZJR S350 Pro
Printing speed 45m/min
Ink color CMYK,White and varnish
Max. web width  360mm
Print Resolution 600*600dpi/900*600dpi/1200*600dpi
Get a Quote PDF Datasheet
Share:
Product Details
MAIN FEATURES

1. The whole machine adopts the latest servo control system and each printing unit is driven by independent servo motor, which ensure the accurate registration during high speed production.

2. The printing roller adopts sleeve type without gear which is light, easy, convenient and fast to change. This type of design is largely improve the printing quality and reduces the maintenance.

3. Motorised pressure adjustment system between anilox roller to plate and plate to substate makes the pressure setting very easy and fast, which greatly improve the efficiency.

4. Printing unit equips with water chiller drum, which ensure the good and stable printing on unsup ported film material.

5. Suitable for printing variety substrates, such as paper, all kinds of adhesive material, unsupported film (PET OPP CPP PP), cardboard and so on.

6. Equips with high-precision Piezo print head, mutiple printing resolution are available (1200*600/900*600/600*600)

7 Adopts single pass solution, non-contact print.

8.CMYK + special effect + white (optional).

9. Automatic cleaning, moisturizing, and print head ant-collision, makes machine easy and simple maintenance.

10. Supports variable data printing. The printing machine hybrids with flexo and digital meet the application of label with variable data suitable for very short run to long run job.





MAIN TECHNICAL PARAMETERS
Model WG S350 Pro
Print control
Inkjet head Piezo print head,greyscale level
Print Resolution 600*600dpi/900*600dpi/1200*600dpi
Print Speed High resolution mode(1200*600dpi):30m/min
Normalmode(900*600dpi):45m/min
Single bit mode(600*600dpi): 110m/min
Max speed offlexo printing 180m/min
Print Date Fix data, variable data (option)
Print head model EPSONS3200U1/U3
Ink
Ink type UVink
Ink color CMYK,White and varnish
Ink tank 5L/color
Substrate system
Unwinder/rewinder Servo control, tension detector,
Web break protect, roll dia. detector, etc.
Max unwinder/rewinder dia 900mm
Substate thickness (digital) 0.04-0.35mm
Max print width 350mm
Web cleaner Double side contacted type
Static eliminator Static eliminator bar
Max web width 360mm
Drying system
LED dryer White color and special effect: 1 color/dryer;
CMYK and panton: 2 colors/dryer
Complete curing
Cleaning system Auto cleaning system
Cleaning unit
Data transfer Optical interface
Connector Touch screen
Controlpanel
Dimension 14800*2500*2500mm
Dimension 37m²
Floor space
Installation conditions Temperature: 20-30degree; humidity: 20-50%
Surroundings 380V 3P
Power supply (Inkjet printer: 15kw; LED/UVfor inkjet:20kw)
Air supply 0.8Mpa

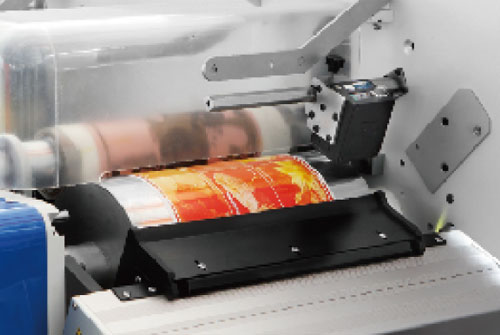

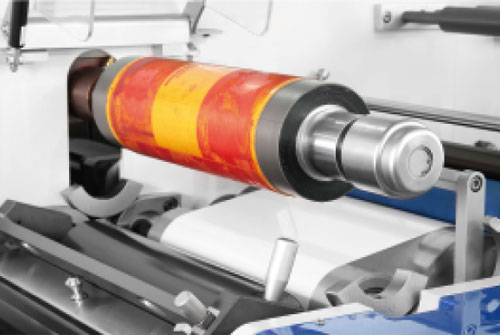

Sleeve

Sleeve

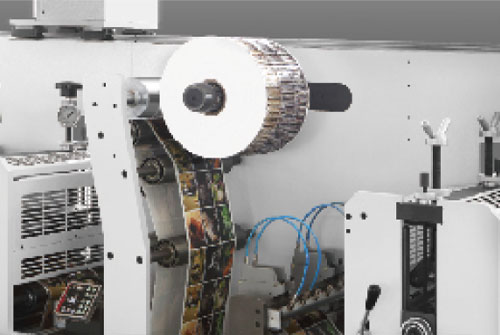

UV Dryer and Water Chiller Drum

UV Dryer and Water Chiller Drum

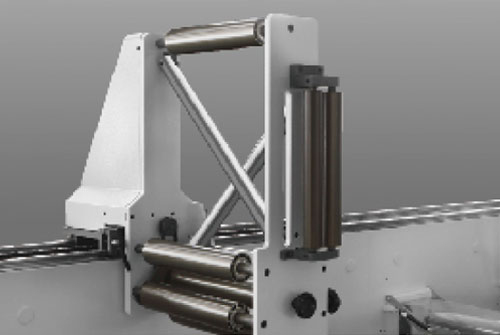

Movable Turn Bar

Movable Turn Bar

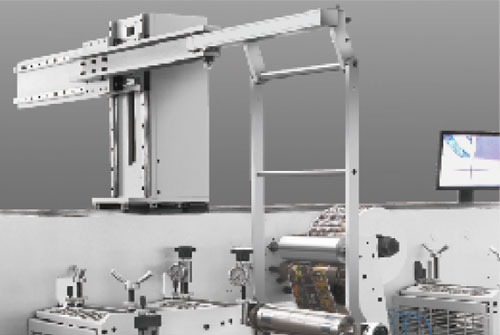

Matrix Unit

Matrix Unit

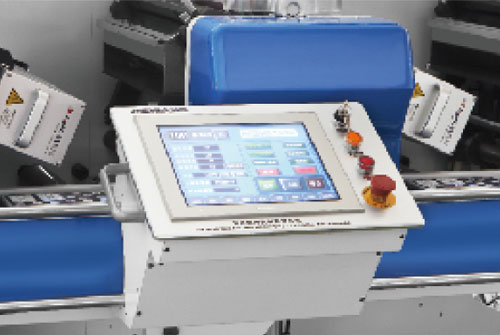

Touch Screen

Touch Screen

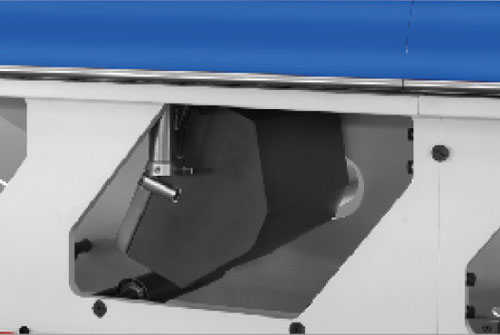

Die Cutting Roller Lifter

Die Cutting Roller Lifter

Hot Air Dryer (Option)

Hot Air Dryer (Option)

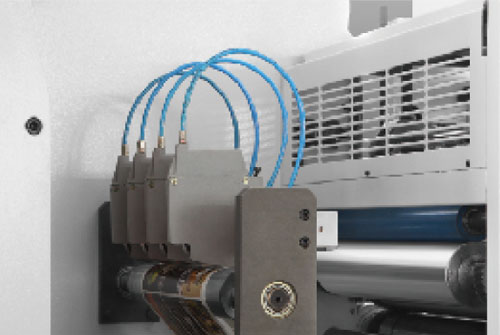

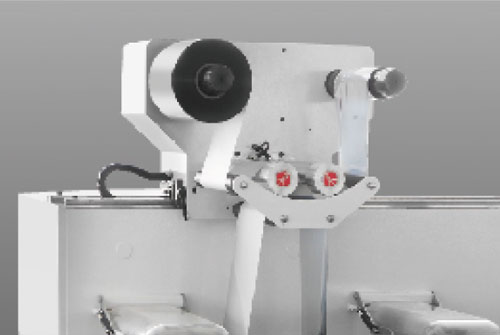

Movable Cold Stamping (Option)

Movable Cold Stamping (Option)

Slitting Unit (Option)

Slitting Unit (Option)
